Rally Bluetooth Module

€119,99
/
Tax included.
Only 5 items in stock!

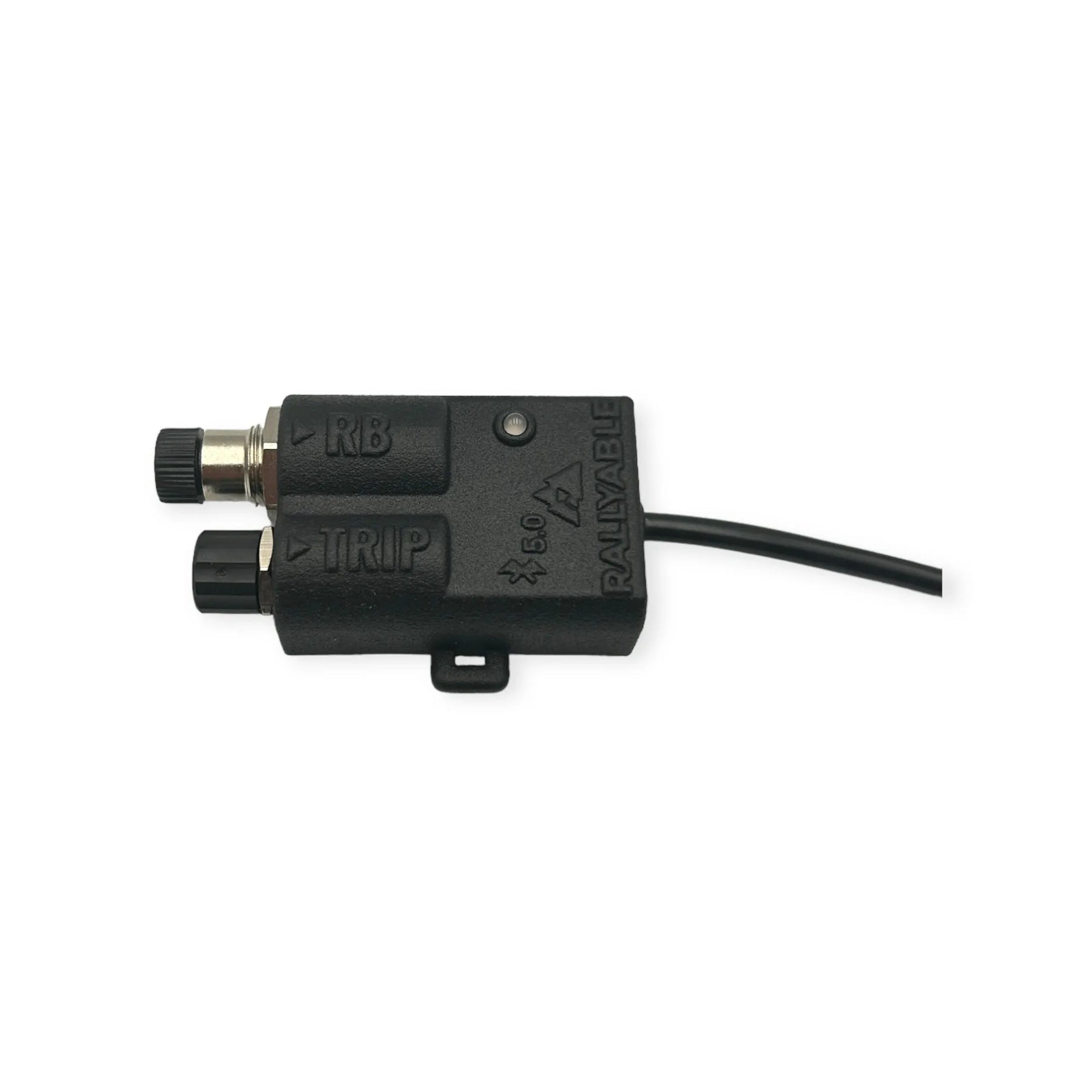

Lightest and most compact rally Bluetooth module that turns conventional rally switches into tools for digital rally setups or controlling other navigation apps on iOS and Android.

  • Turn your Roadbook and Tripmaster controller into a Bluetooth remote compatible with various roadbook,navigation and music apps (TerraPirata,Piste Roadbook Reader,Rally Navigator reader etc.,DMD2, OsmAnd Maps, etc.
  • 4 modes available, indicated by LED color
  • Automatic standby mode for power saving
  • Water and Dust Resistance: It’s nitrogen purged and fully sealed against moisture and dust, giving you peace of mind while riding in heavy conditions, rain, mud or dust.
  • 5-21V voltage input with short circuit, overload and reverse polarity protection



Included: Rally Bluetooh Module,Dust caps, power cable with fuse

Not Included: Multiswitch Standard



Led indicator:

  • Flashing red: no Bluetooth connection
  • Firm red: Rally/Music mode
  • Firm blue: Osmand Maps mode
  • Flashing blue: TerraPirata mode
  • Firm purple: DMD2 mode



Controls:

  • Mode change: press buttons 1 & 2 simultaneously or button 1 until desired mode is indicated by led.
  • To ensure optimal functionality, the iOS or Android device in use must be configured with the standard English keyboard.

Rally/Music mode

  • Button 1: Lock screen/play pause
  • Button 2: Tripmeter Increase/Increase volume
  • Button 3: Tripmeter Decrease/Decrease volume
  • Lever up (4): Roadbook Scroll Up/Previous track
  • Lever Down(5): Roadbook Scroll Down/Next track



Osmand Maps Mode

  • Button 1: My Location
  • Button 2: Zoom In
  • Button 3: Zoom out
  • Lever up (4): Move Up
  • Lever Down(5): Move Down



TerraPirata Mode

  • Button 1: Reset main Tripmeter
  • Button 2: Tripmeter Increase
  • Button 3: Tripmeter Decrease
  • Lever up (4): Roadbook Scroll Up
  • Lever Down(5): Roadbook Scroll Down



DMD2 Mode

  • Button 1: Custumizable in the App
  • Button 2: Custumizable in the App
  • Button 3: Custumizable in the App
  • Lever up (4): Custumizable in the App
  • Lever Down(5): Custumizable in the App

Wiring Instructions

  • TRIP – Remote Tripmeter Control Port
    Connects to external tripmeter control buttons.

  • SW – Remote Roadbook Control Port
    Connects to external roadbook control switch/buttons.

Warning:
Do not connect 12V power or any devices power cord to the TRIP or SW ports.
Doing so will cause a short circuit and may damage the device.

Included: Rally,bluetooth module, dust plugs

Not included: Multiswitch Standard
